36-642 Taylor TX360M
Rental ID
36-642
Capacity as Equipped
30,400 lbs @ 24" Load Center
Mast-Max Fork Height
240"
Mast-Overall Lowered Height
147"
Dimensions
103" Wide x 186" Long (Less Forks) x 147" High
Gross Weight
49,950 lbs Approx
Forks
96" x 8" x 3.5" Standard Taper
Fuel
Diesel
Forklift Specifications
Rental ID:
36-642
Make:
Taylor
Model:
TX360M
Capacity:
36000 LB
Capacity as Equipped:
30,400 lbs @ 24" Load Center
Load Center:
24"
Mast-Overall Lowered Height:
147"
Mast-Maximum Fork Height:
240"
Mast-Overall Raised Height:
307" (3) Stage Mast
Mast-Free Lift:
80"
Carriage:
'C' Type, Maximum Fork Spread Outside Dimension 99", Minium 18"
Forks:
96" x 8" x 3.5" Standard Taper
Attachments:
Side Shifter, Fork Positioner
Door Clearance Dimension:
152"
Power:
QSB6.7-C160 Cummins Tier III
Fuel:
Diesel
Fuel Capacity:
53 Gallons
Transmission:
3 Speed Powershift
Tires:
1200 X 20, 18 Ply Rating, Air Drive, Air Steer
Dimensions:
103" Wide x 186" Long (Less Forks) x 147" High
Gross Weight:
49,950 lbs Approx
Safety Equipment:
OHG, Backup Alarm, Forward Alarm, Warning Light, Operating Lights, Seat Belt, Fire Extinguisher, Data Plate, Safety Decals, ** PERMITS REQUIRED FOR TRANSPORTING **
Accessory:
Full Cab w/Accessories, Air Conditioner, Hydraulic Control Paddle Levers, Engine Block Heater, High Air Intake, Front Camera, "D" Rings
Dimensions Guide
LIFT VIDEO
Forklift Description

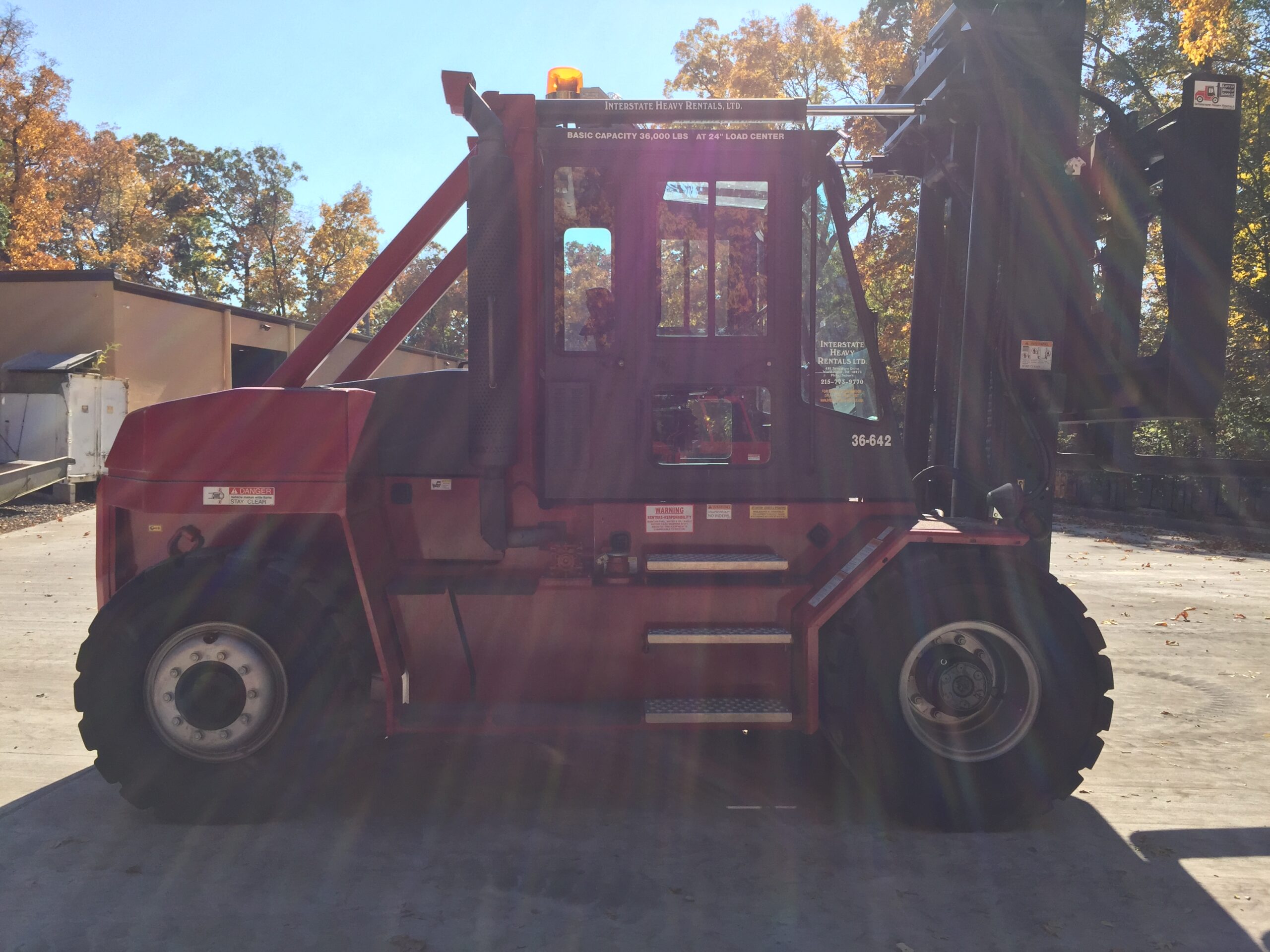

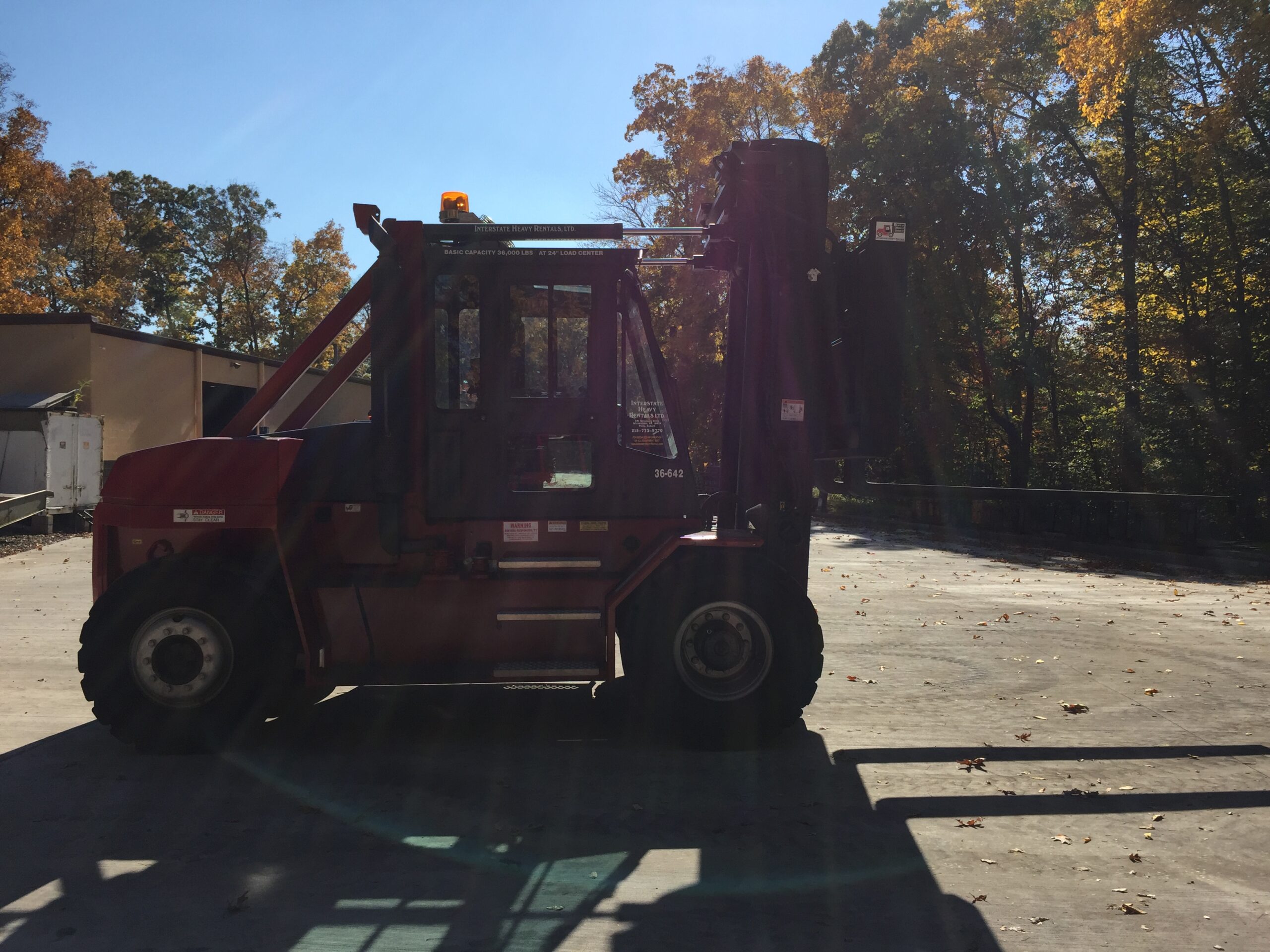

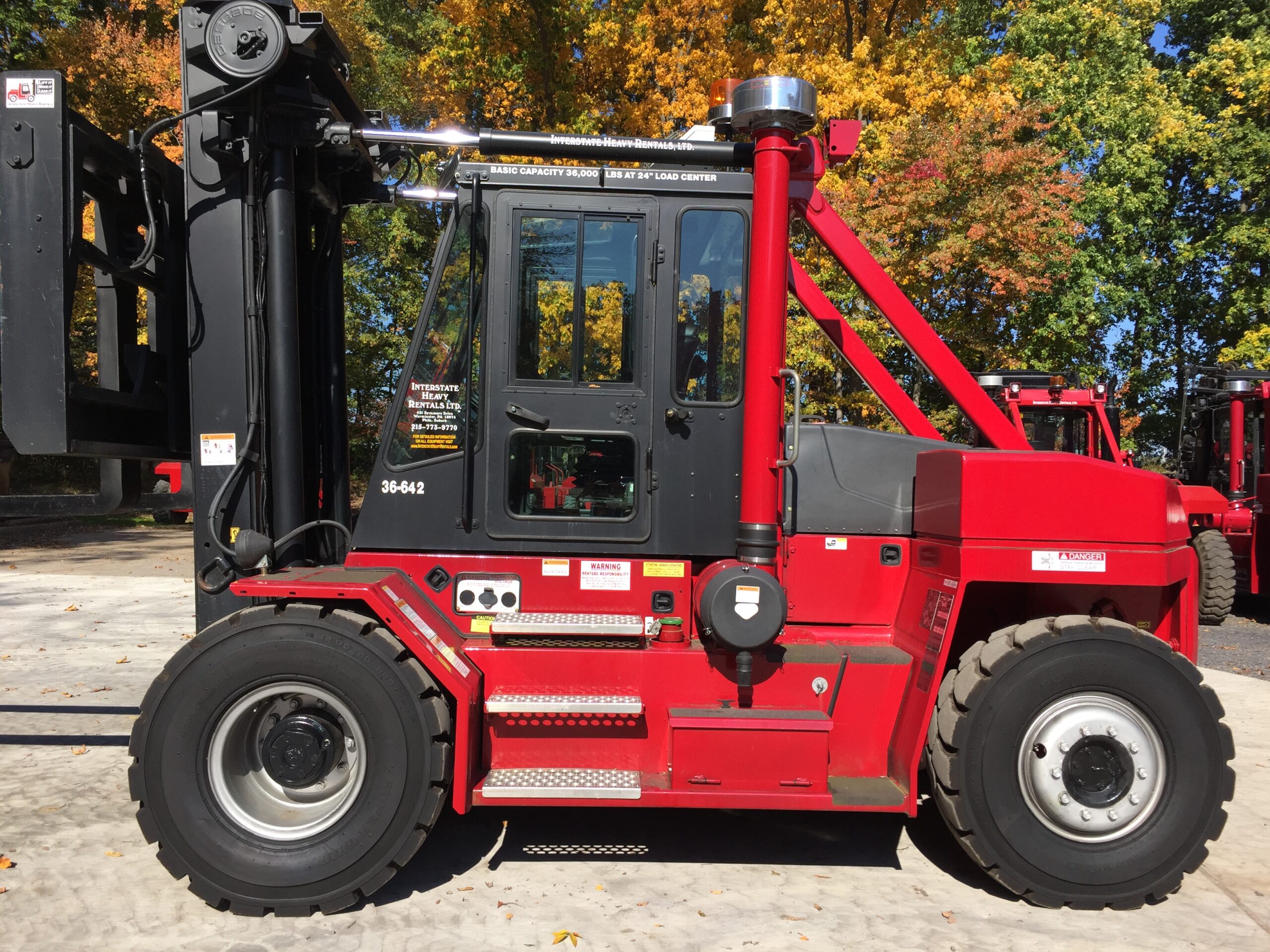

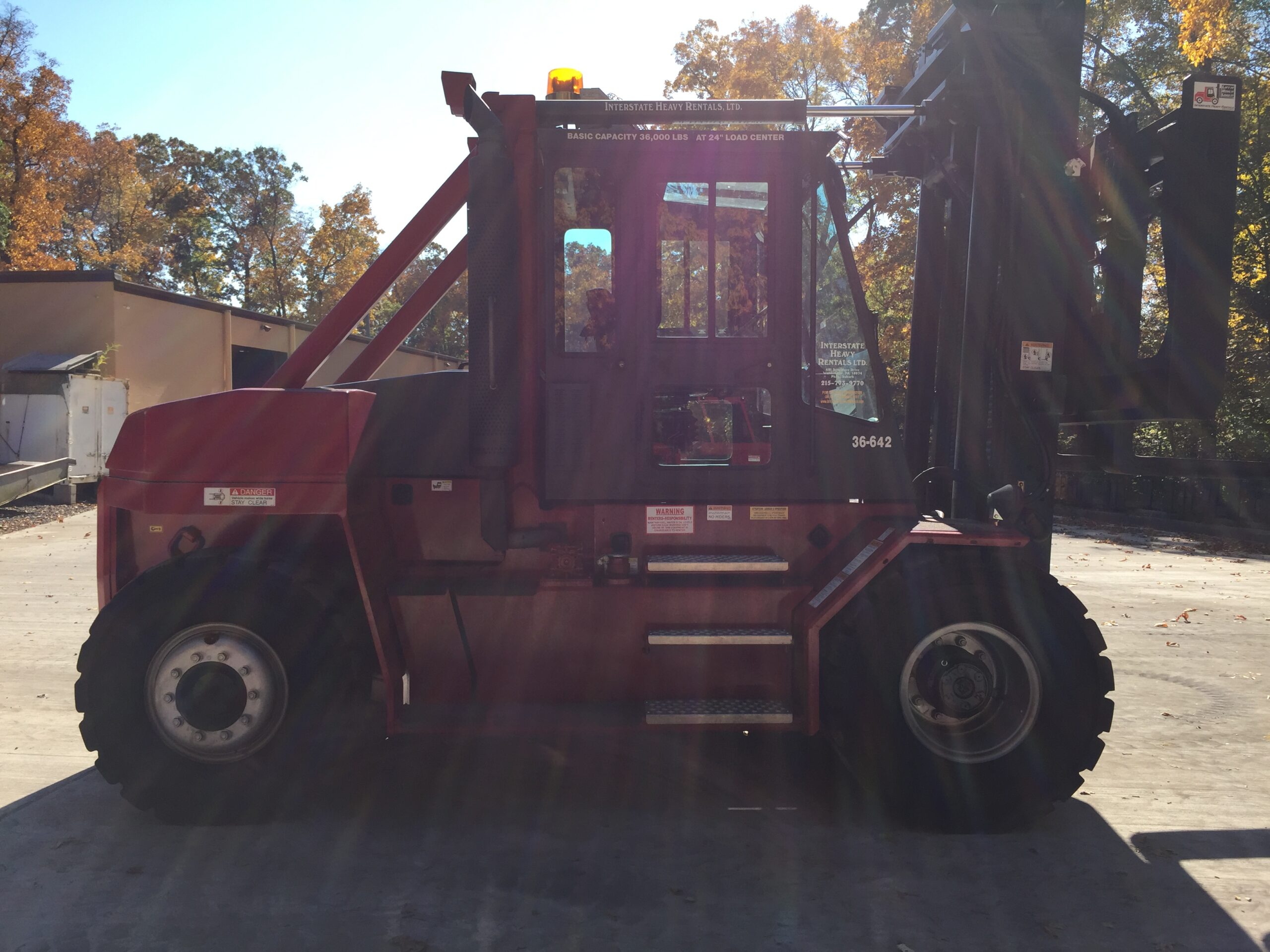

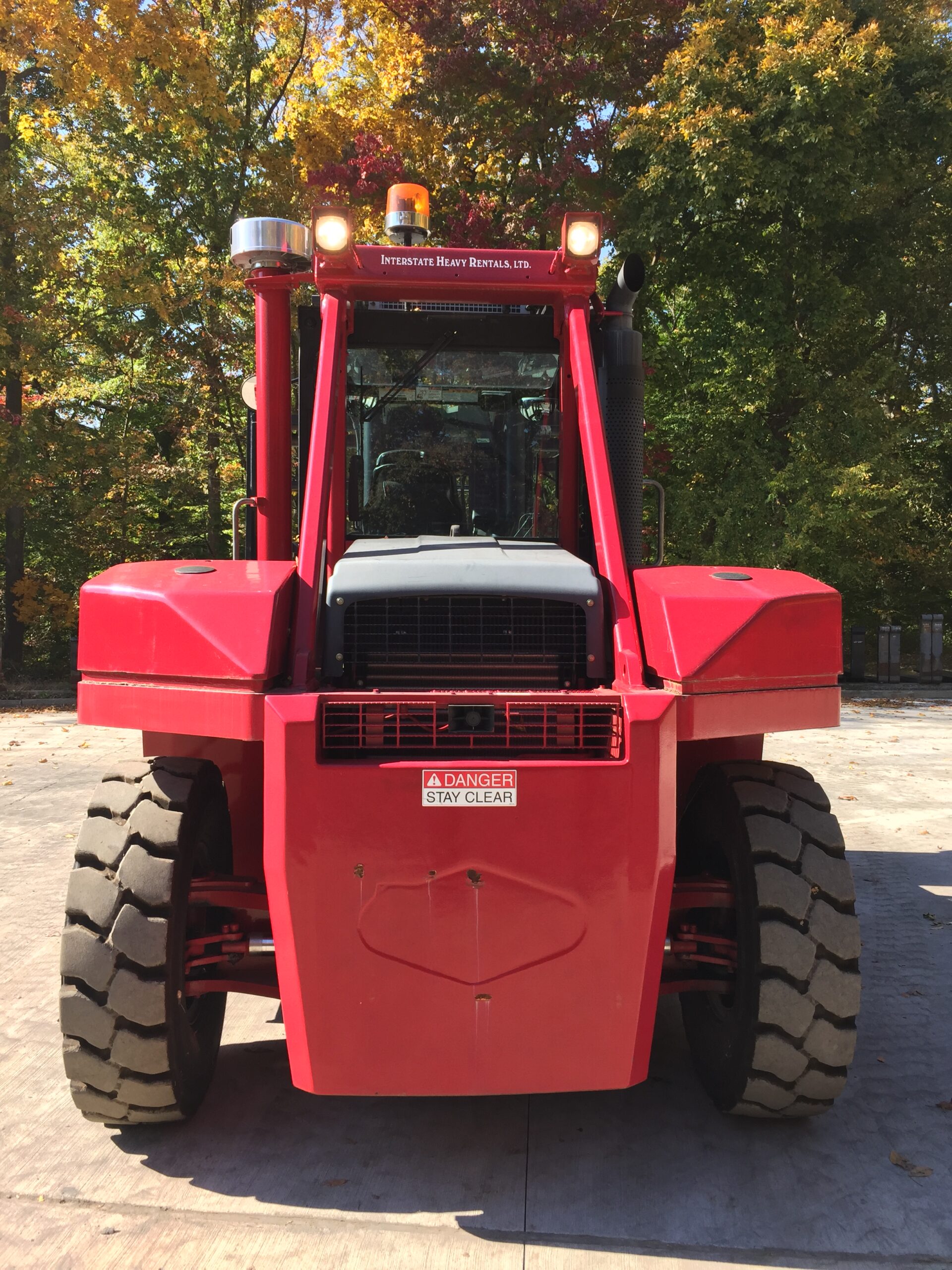

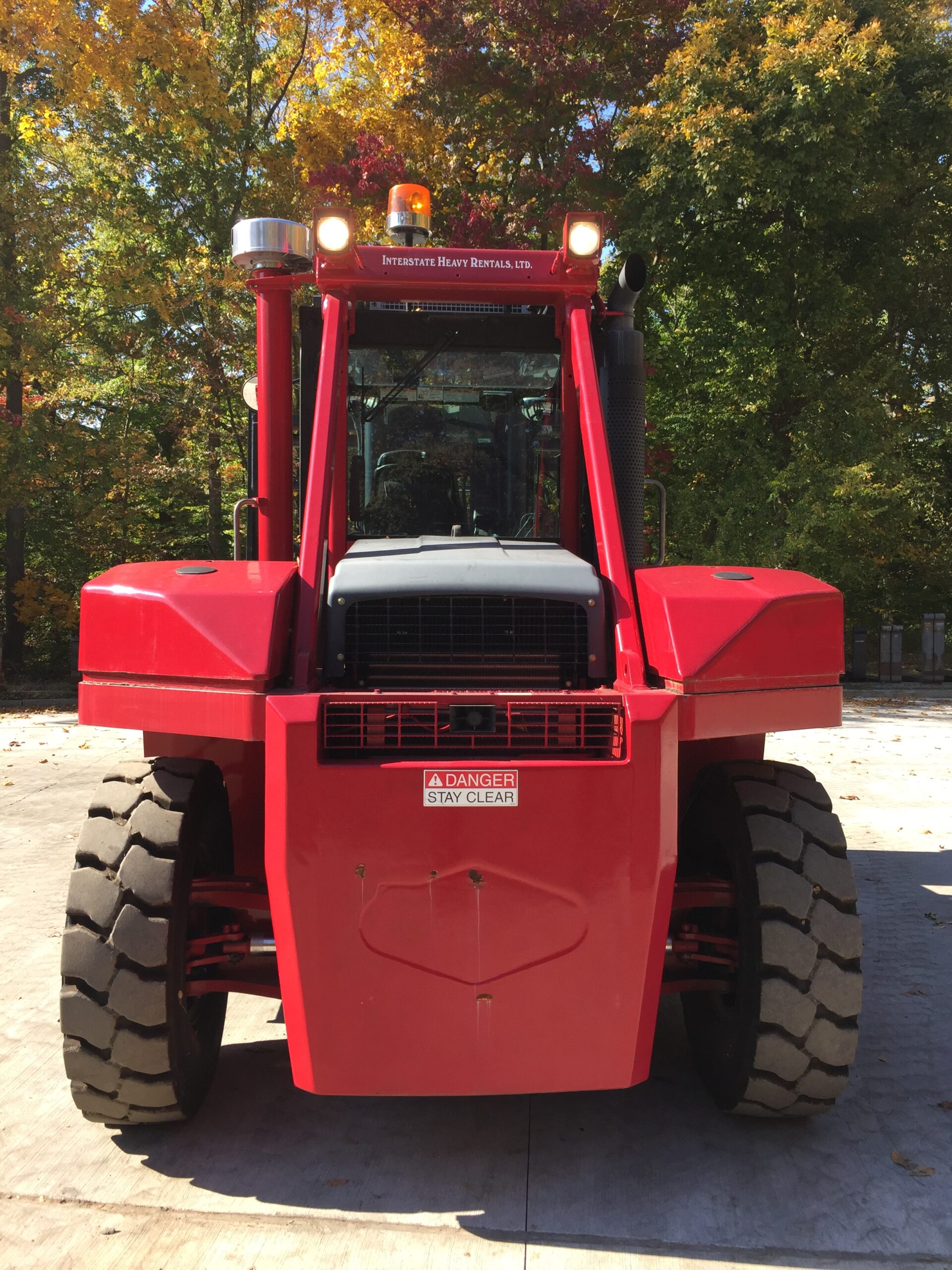

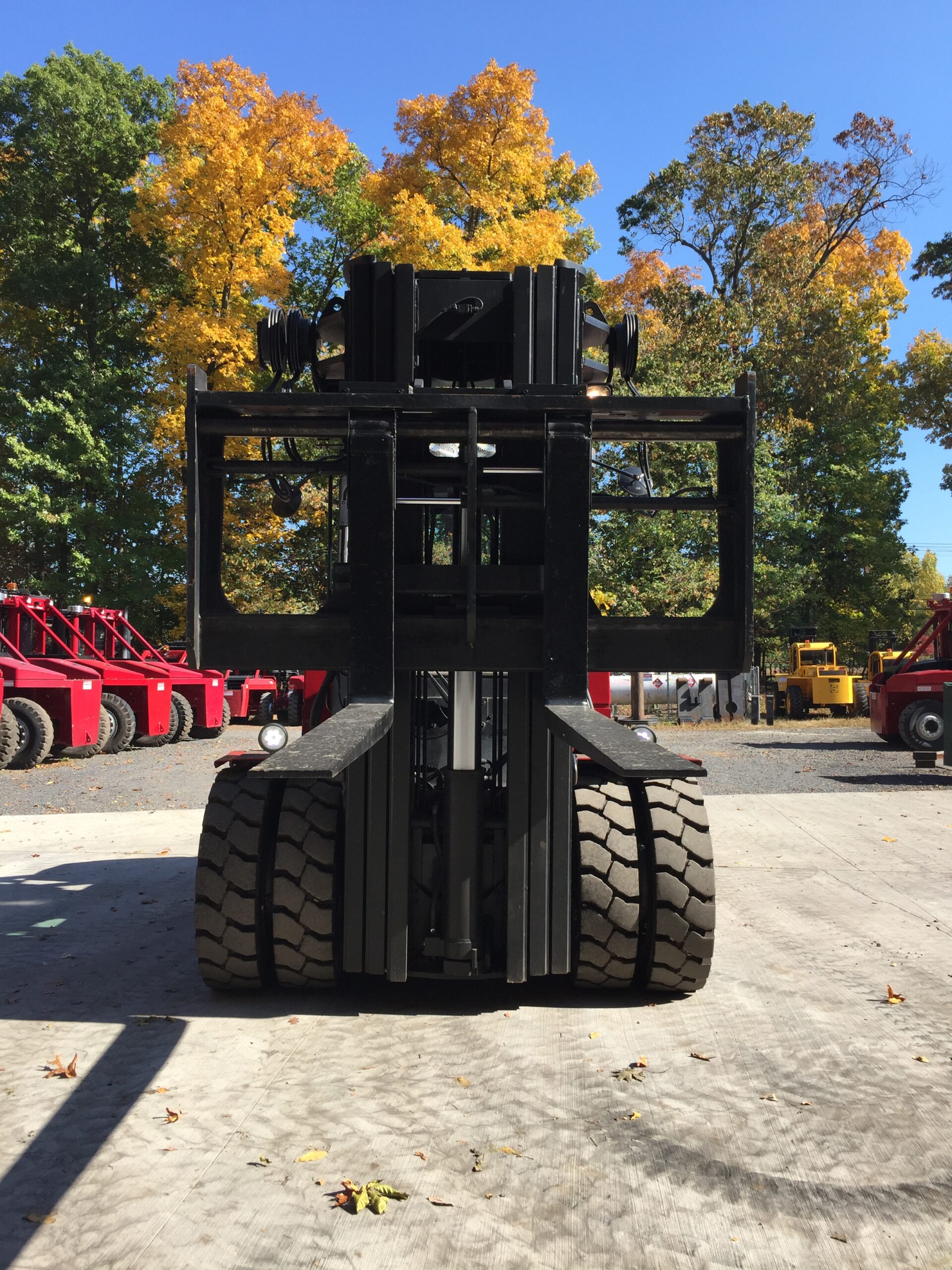

This Taylor forklift, also known as a Big Red, can handle any of your heavy lifting needs. This 36,000# capacity unit runs on Diesel power, and has over 20′ of lifting capabilities. All of the safety features are on the truck as well as a Cab.
Interstate Heavy Rentals delivers our forklifts all over the Eastern seaboard. For example Pennsylvania PA, New Jersey NJ, Delaware DE, Maryland MD, New York NY, Vermont VT, New Hampshire, Connecticut CT, Massachusetts MA, Rhode Island RI, Maine ME, Virginia VA, West Virginia WV, Ohio OH, Indiana IN, Kentucky KY, North Carolina NC, South Carolina SC, Tennessee TN, Florida FL, Georgia GA, Mississippi MS, Michigan MI, and Alabama AL.
We also deal with some construction lifts and aerials, as well as all kinds of rigger type fork lifts also known to some as “hi lo’s and towmotors”. All units are available on short or long term lease, and occasionally we have rental retirements for sale when our company is replenishing our fleet with new equipment. Our standards are very high when it comes to the forklifts we rent to our customers.
All data is as accurate as possible, but not guaranteed against typographical errors.
