22-625 Taylor T220S
Rental ID
22-625
Capacity as Equipped
19,890 lbs @ 24" Load Center
Mast-Max Fork Height
158.7"
Mast-Overall Lowered Height
150.5"
Dimensions
96" Wide X 162" Long (Less Forks) X 150.5" High
Gross Weight
34,350 lbs Approx
Forks
96" X 7" X 3" Standard Taper
Fuel
Diesel
Forklift Specifications
Rental ID:
22-625
Make:
Taylor
Model:
T220S
Capacity:
22000 LB
Capacity as Equipped:
19,890 lbs @ 24" Load Center
Load Center:
24"
Mast-Overall Lowered Height:
150.5"
Mast-Maximum Fork Height:
158.7"
Mast-Overall Raised Height:
228.5"
Mast-Free Lift:
0"
Carriage:
'C' Type Maximum Fork Spread Outside Dimension 98", Minimum 18"
Forks:
96" X 7" X 3" Standard Taper
Attachments:
Side Shifter, Fork Positioners
Door Clearance Dimension:
155.5"
Power:
QSB5.9-30 Cummins Diesel
Fuel:
Diesel
Fuel Capacity:
35 Gallons
Transmission:
3 Speed Powershift
Tires:
10:00 X 20 -16 P.R. Air Drive & Steer
Dimensions:
96" Wide X 162" Long (Less Forks) X 150.5" High
Gross Weight:
34,350 lbs Approx
Safety Equipment:
OHG, Backup Alarm, Forward Motion Alarm, Warning Light, Seat Belt, Operating Lights, Fire Extinguisher, Data Plate, Safety Decals
Accessory:
Full Cab W/Accessories, Air Dryer, High Air Intake, Block Heater
Dimensions Guide
LIFT VIDEO
Forklift Description

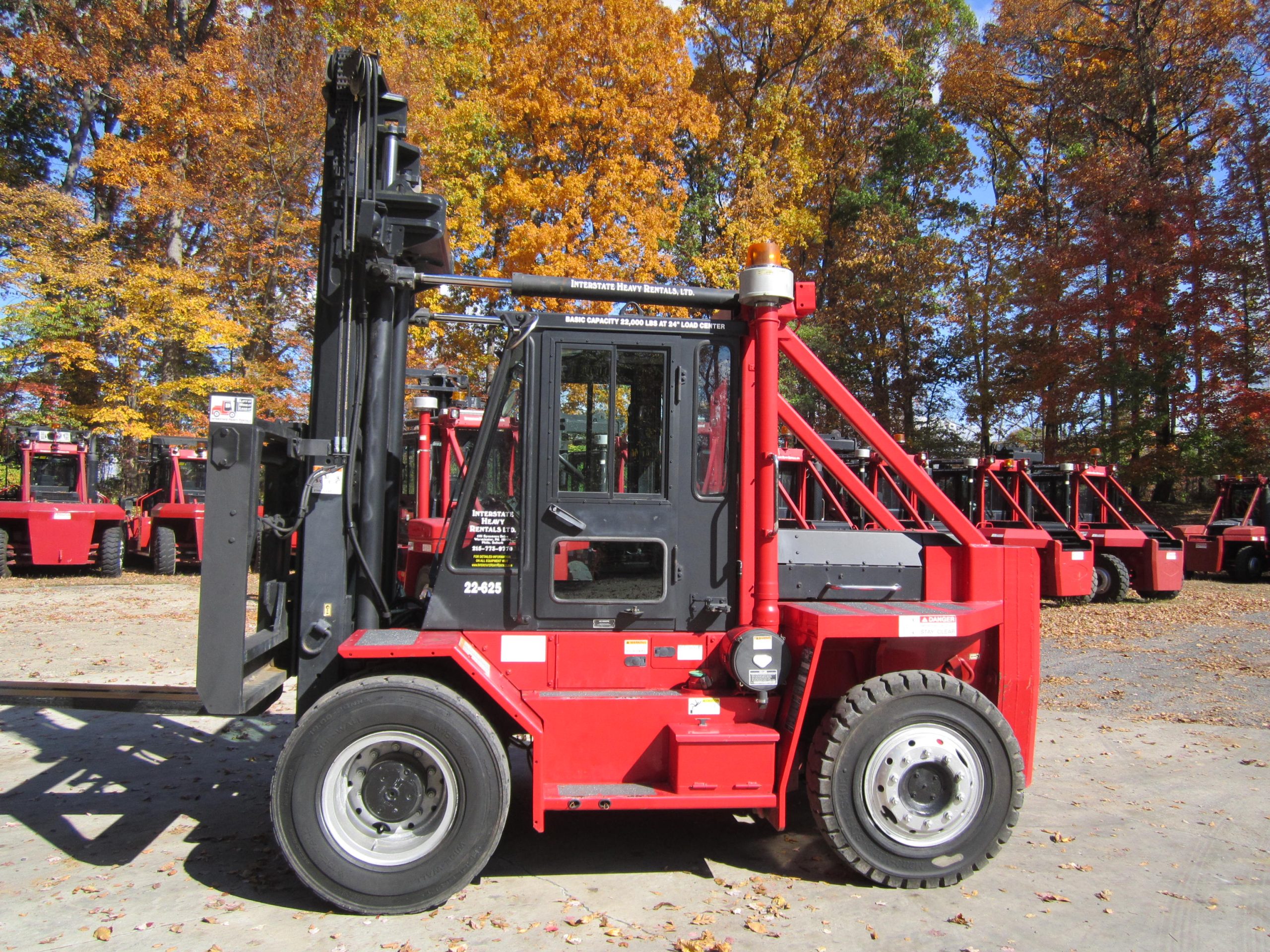

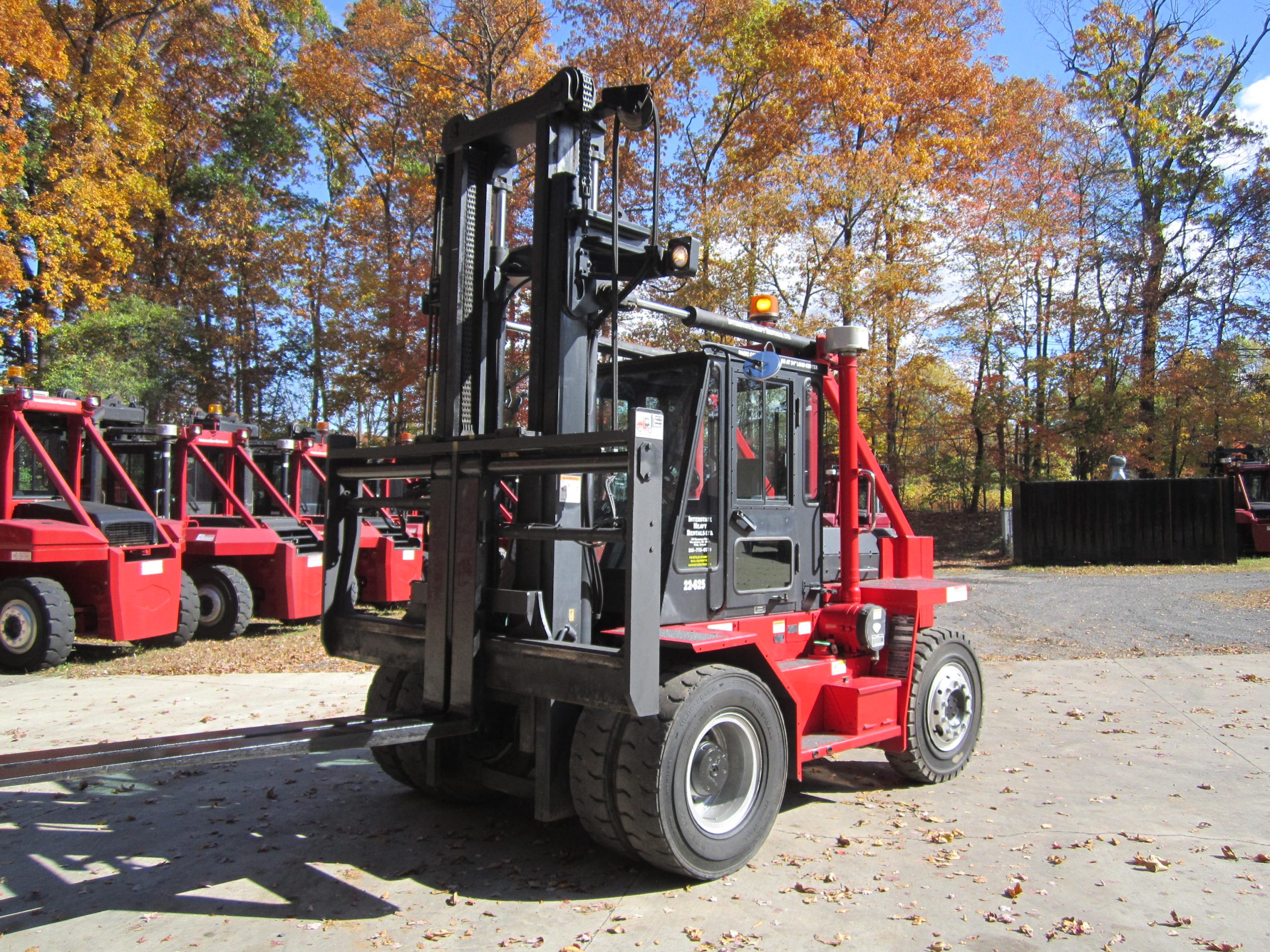

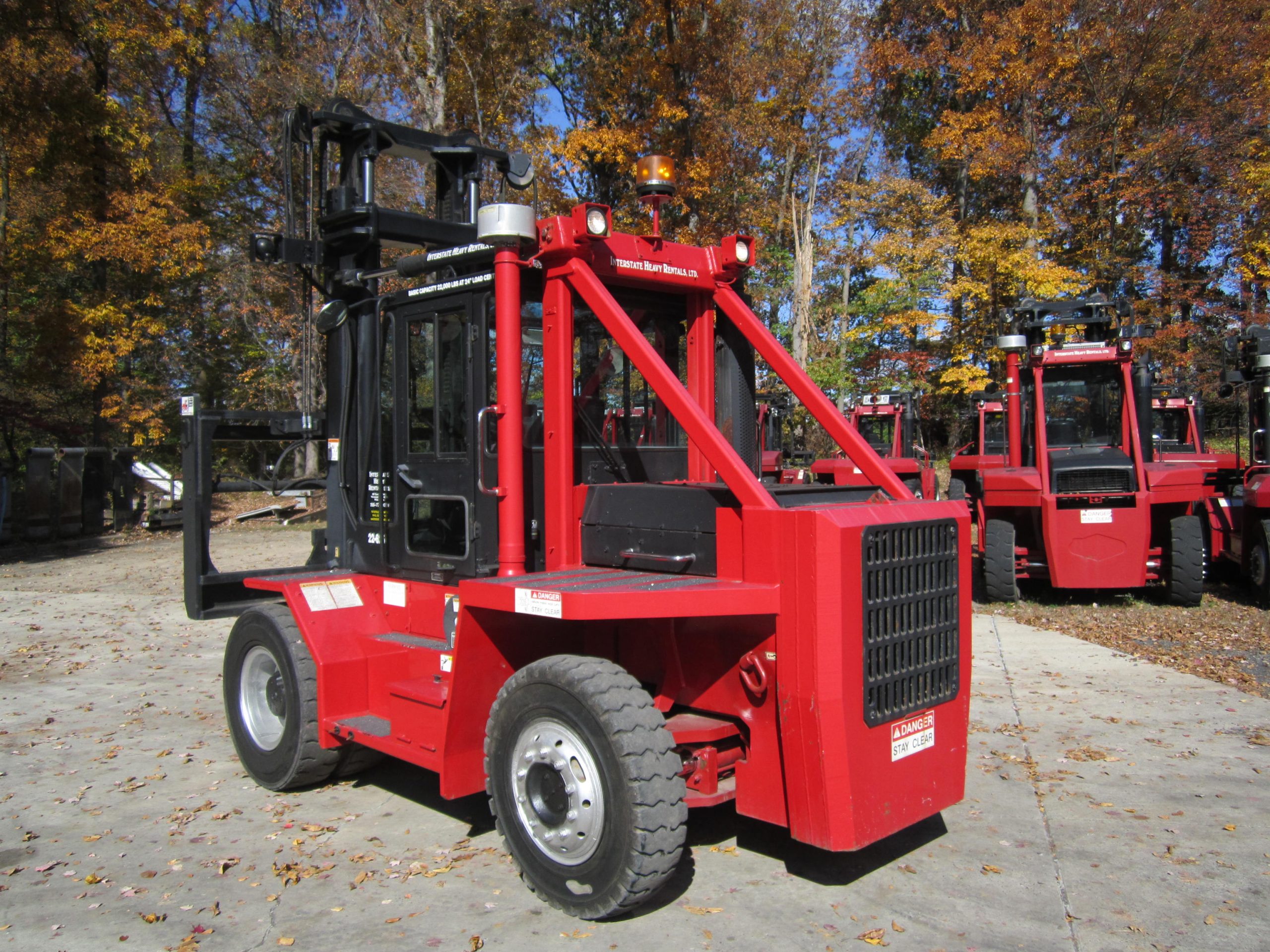

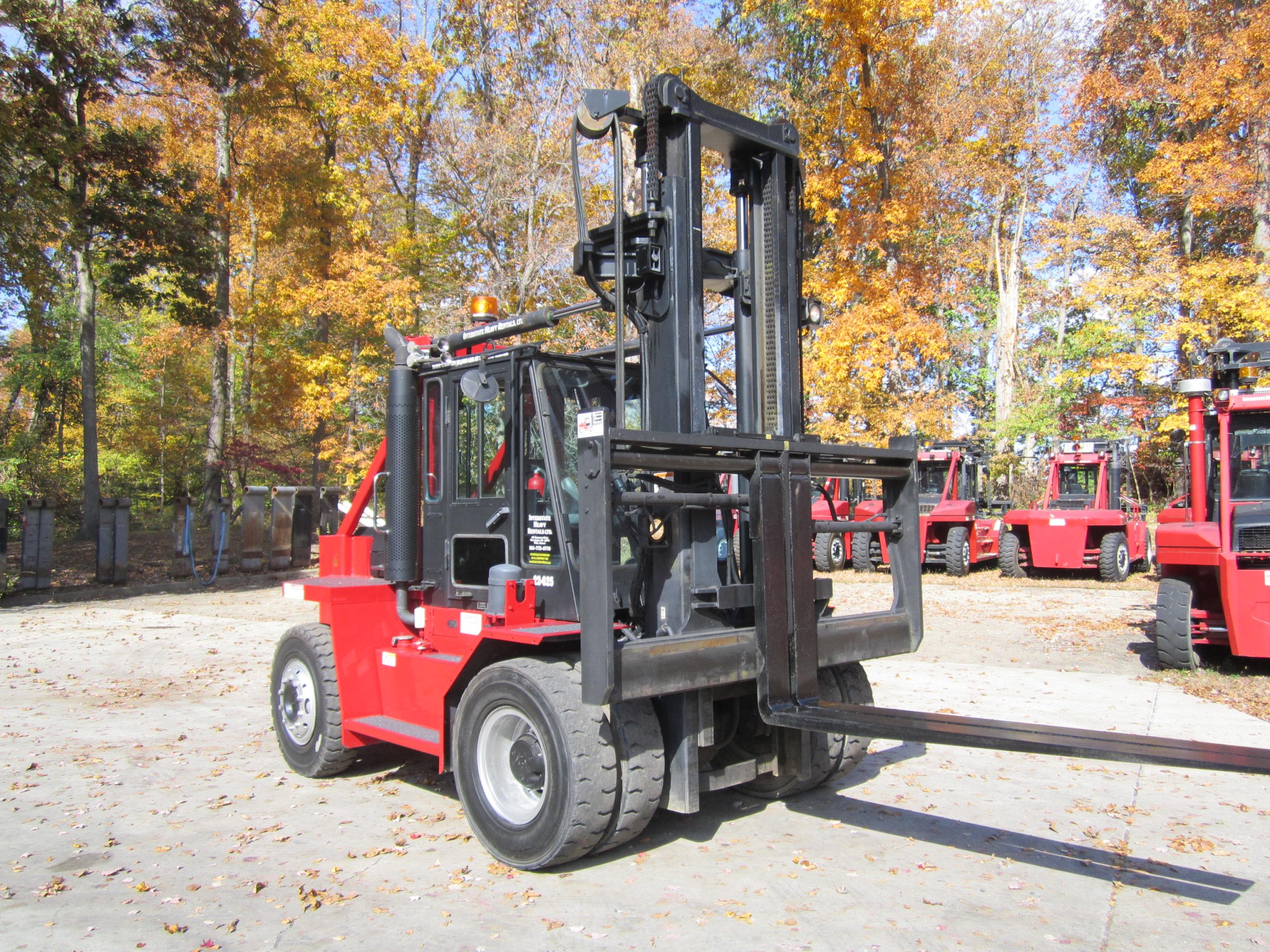

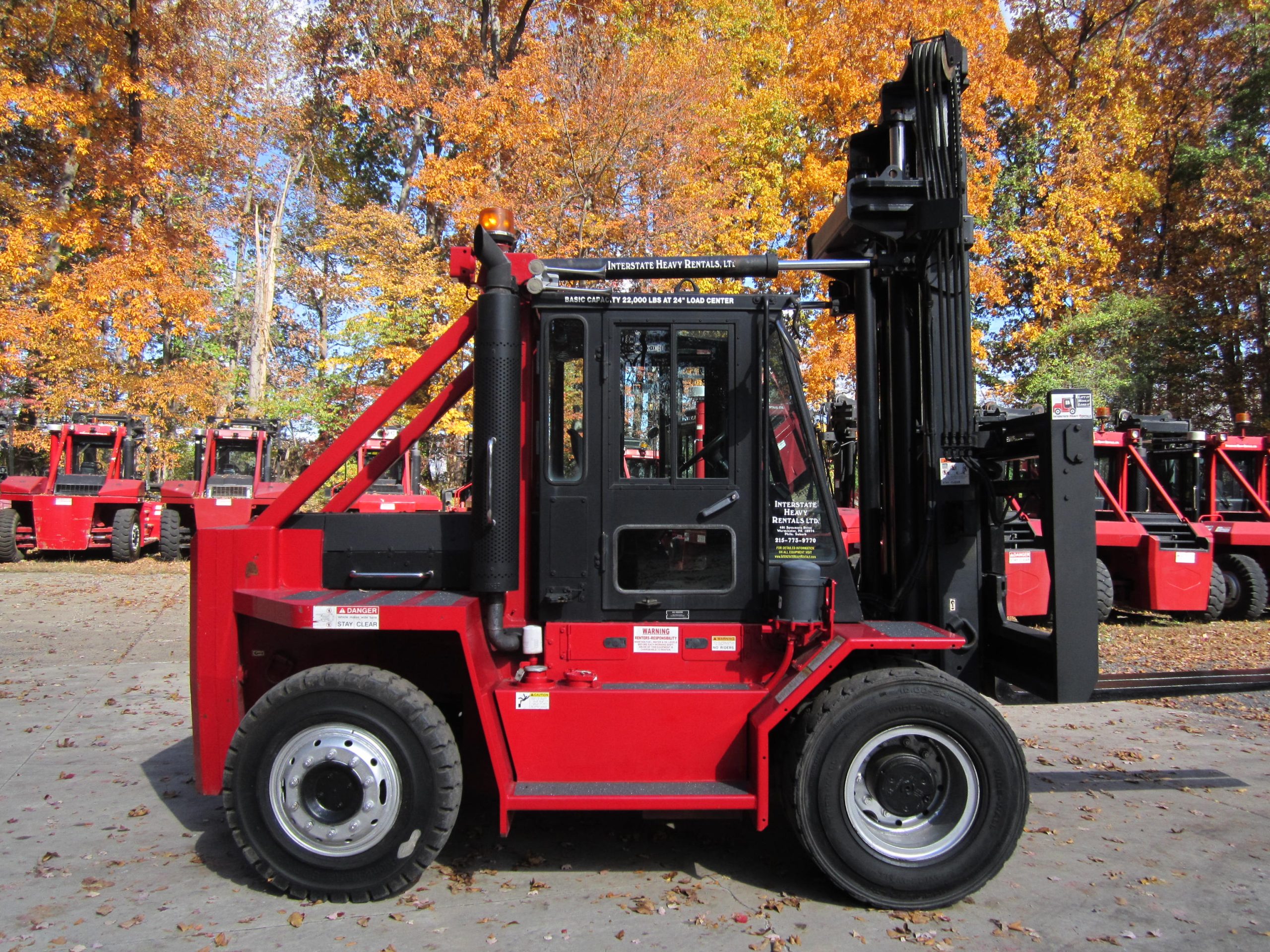

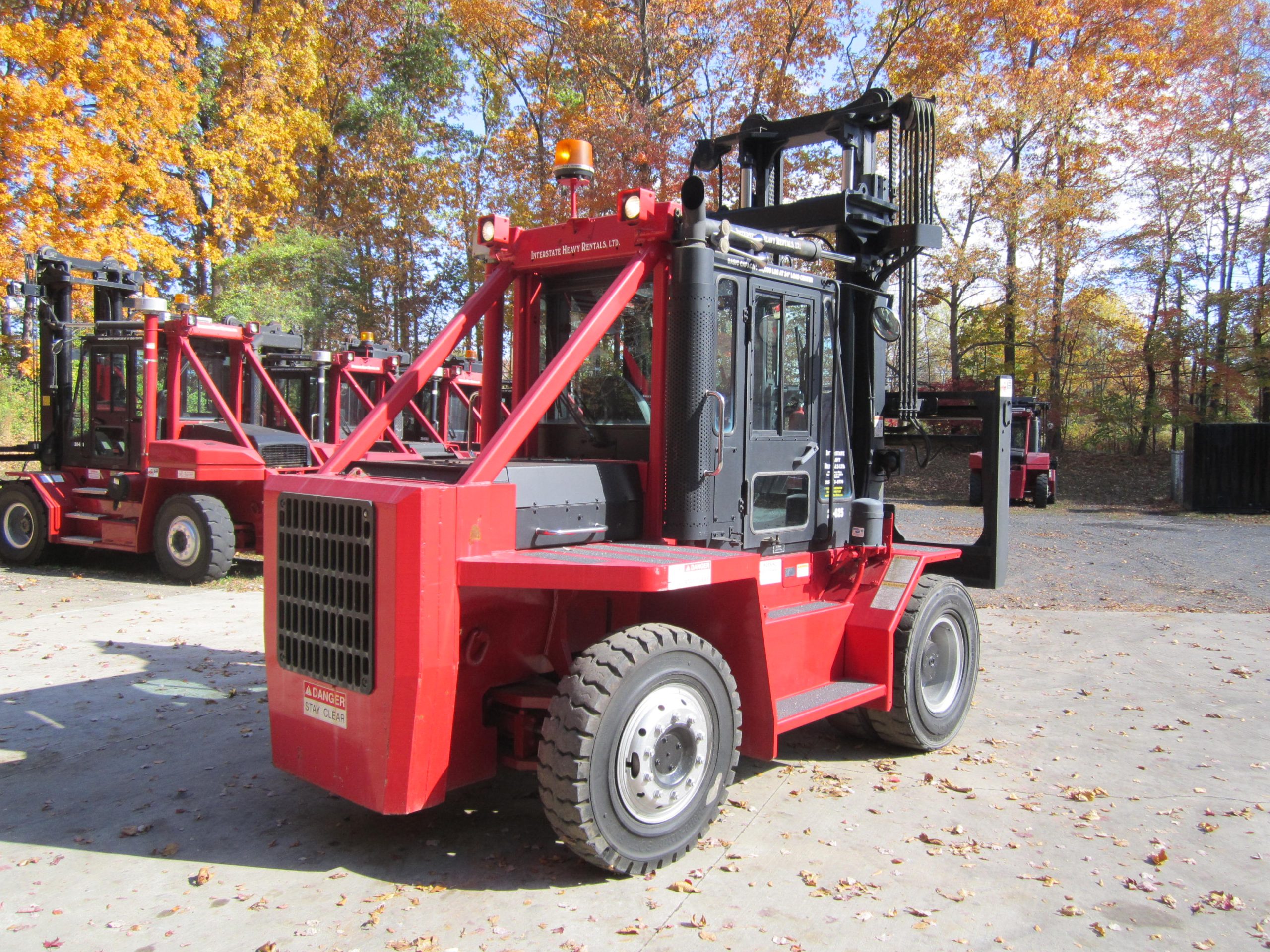

This Taylor forklift, also known as a Big Red, can handle any of your heavy lifting needs. This 22,000# capacity unit runs on Diesel power, and has over 13′ of lifting capabilities. All of the safety features are on the truck as well as a Cab.
Interstate Heavy Rentals deliver our forklifts all over the Eastern seaboard like Pennsylvania PA, New Jersey NJ, Delaware DE, Maryland MD, New York NY, Vermont VT, New Hampshire, Connecticut CT, Massachusetts MA, Rhode Island RI, Maine ME, Virginia VA, West Virginia WV, Ohio OH, Indiana IN, Kentucky KY, North Carolina NC, South Carolina SC, Tennessee TN, Florida FL, Georgia GA, Mississippi MS, Michigan MI, Alabama AL.
We also deal with some construction lifts and aerials, as well as all kinds of rigger type lifts also known to some as “hi lo’s and towmotors”. All units are available on short or long term lease, and occasionally we have rental retirements for sale when our company is replenishing our fleet with new equipment. Our standards are very high when it comes to the forklifts we rent to our customers.
All data is as accurate as possible, but not guaranteed against typographical errors.
